Narrow-aisle - more efficient use of space

Narrow aisle increase the efficient use of storage areas. An additional advantage is the high turn-around rate through faster access. Our multi-space system allows direct access to every pallet and is used as the standard system for forklift- and automatic storage systems.

Guiderail applications

Narrow-aisle pallet racks with 50mm U-shape guiderail. Pallets can be positioned behind the guiderail without any special equipment.

Branch for Example: Logistics industry

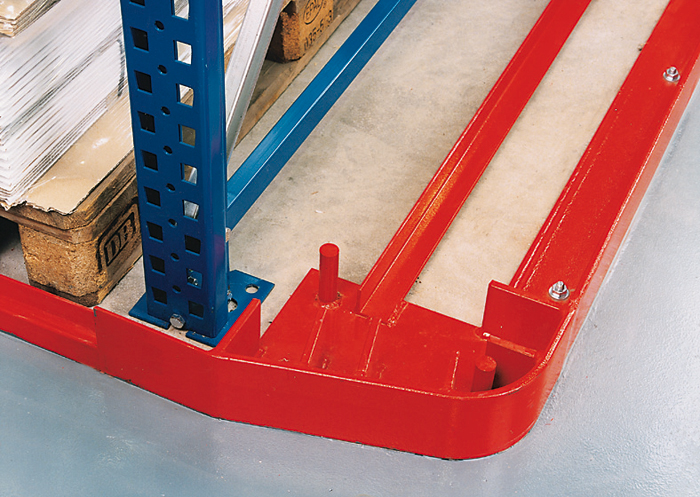

Reinforced corner guide for angle or U-shape guiderails. Facilitates safe entry for forklifts into the aisle.


Narrow-aisle storage systems with guiderails

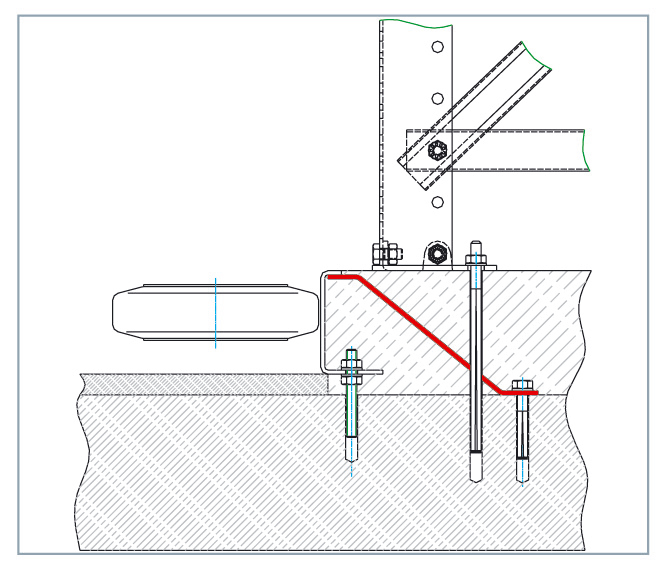

Guiderail with concrete base

  • 100 mm high for filling with concrete at the job site
  • Pallets can be placed directly on the floor behind the guiderail, the most economical solution
  • Anchors every 500 mm
  • Pallets on the bottom level are placed on the concrete base
  • Extremly robust design


50 mm U-shape guiderail

  • 38 mm high
  • Pallets can be placed directly on the floor behind the guiderail, the most economical solution
  • Anchors every 500 mm
  • incl. Anchors

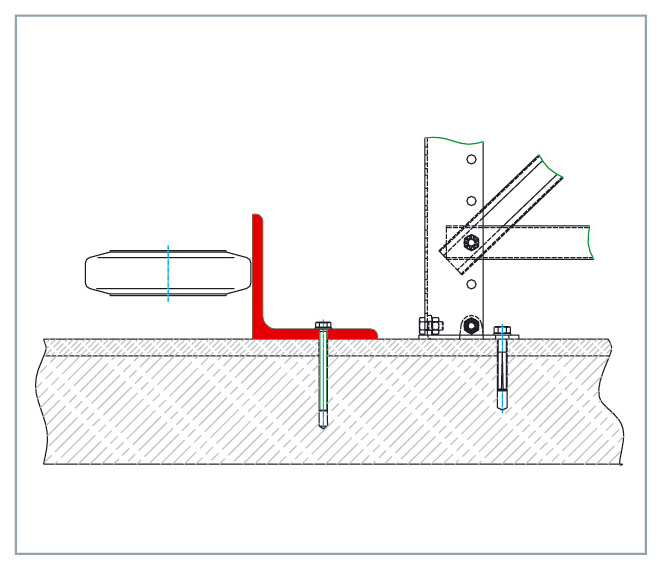

Angle guiderail

  • Height depending on forklift model
  • Anchors every 500 mm
  • incl. Anchors
  • Bottom level requires additional pallet support
