Shelving system Normafix
From part to the whole, from the smallest detail to the comprehensive system. Normafix puts the individual components together logically to create an efficient shelving system.
- Easy to assemble snap-together system - nothing could be simpler!
- Shelves adjustable at 25 mm increments without tools.
- Shelf depth = Rack depth
- Galvanized shelves ( epoxy-coated upon request)
- Uprights epoxy coated
- Usable bay widths: 1010 and 1310mm
- Rack heights: 2000 / 2200 / 2500 / 3000 mm (standard)
- Rack depths: 300 / 350 / 400 / 500 / 600 / 700 / 800 / 1000 / 1200 mm
- Other dimensions available upon request
- Shelf height 42 mm (standard), alternative paneled shelves 25 mm high
- Shelves triple folded for your safety
- Bay loading up to 460 kg (evenly distributed), field loading depending on design
- Bottom shelf (base shelf) at floor level, no baseboard needed
Shelving system Normafix

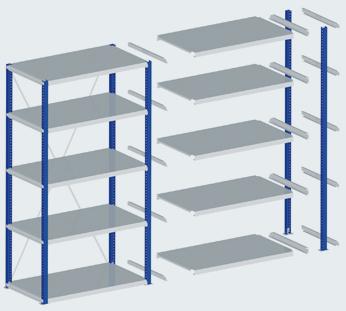

Basic and add-on fields
in standard design
The Normafix shelf row always begins with a basic field. Additional fields can be added to the left or right as needed. Cross bracing is required in every 7th field.
Basic field Normafix
- 4 NF uprights w. footplate per basic field
- Shelves, number variable as required
- 2 shelf supports, 2 end-consoles per shelf
- 1 set cross bracing
- All required fasteners and safety materials
Add-on field Normafix
- 2 NF uprights w. footplate
- Shelves, number variable as required
- 2 shelf supports
- All required fasteners and safety materials
Basic and add-on fields - large bay shelf
This shelf system is designed for access from both sides without bothersome cross bracing. Especially suitable when goods are pushed through for packing.
The required rigidity is achieved through stiffening plates attached at 1 or 2 levels depending upon the loading.
Standard dimensions are 1310 mm usable width and 1200 mm depth for field loadings up to 850 kg.
Basic field - large bay shelf
- 4 NF uprights w. footplate per basic field
- Shelves 42 mm high as static shelves, number depending on loading
- Paneled shelves 25 mm high, number as required
- 2 shelf carriers and 2 end consoles per bay / paneled shelf
- All required fasteners and safety materials
Add-on field - large bay shelf
- 2 NF uprights w. footplate
- Shelves, panels as required
- 2 shelf carriers per bay / paneled shelf
- All required fasteners and safety materials
