Bolted design Screwfix

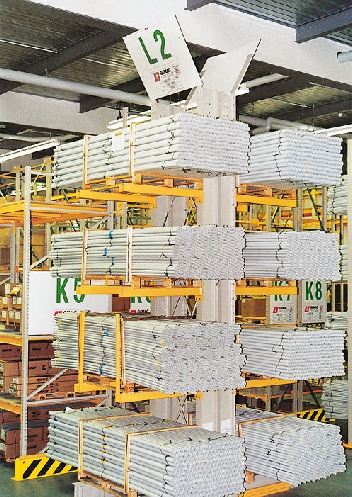

The GEMAC-cantilever rack system convinces through its stability and load carrying capacity. All components are compatible and make Screwfix a truly strong system.

Assembly and service friendly. Additions and modifications are no problem. Your gain is efficiency.

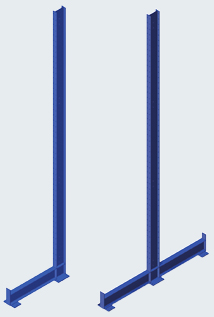

Cantilever upright frame

• Hot rolled IPE -shapes acc. to DIN 1025
• Single or double sided design
• Dimensions depending on static requirements
• System perforations = 100 mm increments
• Foot profile corresponds to upright

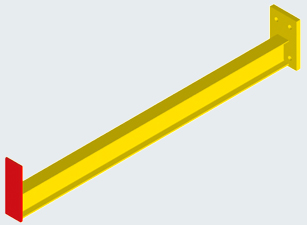

Cantilever arms

• Hot rolled IPE -shapes acc. to DIN 1025
• Very high loading capacity, low profile height
• Extremely robust and durable
• Bolted to cantilever frames
• Design 1:
  Standard model - with protruding head plate, secured with 4 bolts
• Design 2:
  Head plate welded flush, secured with 2 bolts

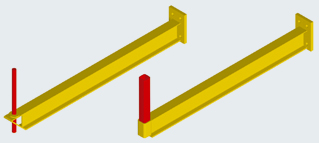

Cantilever arm with front retainer

• Flat-bar steel
•

• Stops goods, especially round materials from falling out of the rack
• Firmly welded to the arm
• Various heights as required

Cantilever arm with removable front retainer

• Made of square tubing or round steel
• Stops goods from falling out of the rack
• Removable
• Various heights as required

Cantilever arms with lateral supports

• Laid across the arms
• To support gratings or wooden shelves
• Used together with shelves, provide enormous space advantage without side limitations of the bays

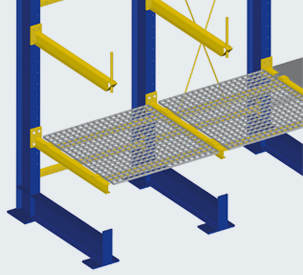

Cantilever arms with 2 lateral supports and grating shelf

• For the creation of packing zones
• To store pallets or containers in the cantilever rack
• Laid across the lateral supports
• Grating lies flush between the arms
• Design depends on static requirements
