Partition wall systems

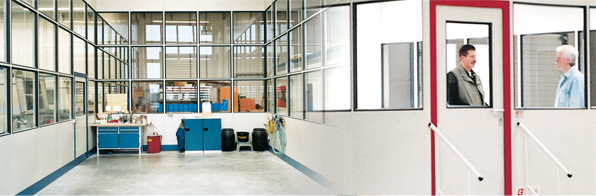

GEMAC -partition walls create separate work areas for your individual needs. Walls up to 7 m height can separate your work areas all the way up to the ceiling, if needed, with swinging, sliding or rolling doors. Alternately free-standing partitions can create separate work areas as required.

Wall element variations

Full wall

Standard width	Height
250 mm	2 550 mm
500 mm	2 790 mm
750 mm	3 040 mm
1 000 mm	max. 7 000 mm

Glazed wall

Standard width	Height
500 mm	2 550 mm
750 mm	2 790 mm
1 000 mm	3 040 mm
	max. 7 000 mm

Fully glazed wall

Door for skylight

Standard width	Clearance
1 000 mm	2 094 mm
2 000 mm	2 219 mm

Double door w. opening top panels

Standard width	Clearance
1 500 mm(1.5flg.)	2 600 mm up to
2 000 mm	3 400 mm
2 500 mm

Center glazed wall

Standard width	Height
500 mm	2 550 mm
750 mm	2 790 mm
1 000 mm	3 040 mm
	max. 7 000 mm

Standard width	Height
500 mm	2 550 mm
750 mm	2 790 mm
1 000 mm	3 040 mm
	max. 7 000 mm

Standard width	Height
500 mm	2 550 mm
750 mm	2 790 mm
1 000 mm	3 040 mm
	max. 7 000 mm

Standard width	Height
1 000 mm	2 550 mm
2 000 mm	2 790 mm
	3 040 mm
	max. 7 000 mm

Full wall w. sliding window

Skylight wall

Double door for skylight

Standard width	Clearance
1 500 mm(1.5flg.)	2 094 mm
2 000 mm	2 219 mm
2 500 mm

Sliding door

Standard width	Clearance
1 000 mm	2 000 mm up to
1 500 mm	3 000 mm
2 000 mm
2 500 mm
3 000 mm

We comply to building codes!

Throughout planning, manufacturing and implementation of our office systems we adhere to the workplace regulations, (German ArbStättV) and guidelines.
