Measuring rooms / technical rooms / clean rooms


With the partition wall system Indoor Line, GEMAC offers precision and economy. We conceive enclosures that, in combination with modern climate control systems, provide tailor-made measuring rooms. After assembly and commissioning we conduct qualified functional tests. If required and requested acceptance procedures can be conducted acc. to VDI/VDE 2627 guidelines.

Planning criteria:

Room dimensions: length, width, height, air gate, etc.

Room climate:

measuring room grade, basic temperature, surrounding temperature, time and space temperature fluctuations, humidity, air speed, filter class

Room influences:

heat, machines, personnel, PC, etc.

Measurement requirements:

Dimensions, characteristics, measuring area, measuring method, permissible tolerances, instruments and devices

Grades for measuring rooms acc. to VDI/VDE 2627


Grade 1 precision measuring room


Grade 2 fine measuring room


Grade 3 standard measuring room


Grade 4 near production measuring room


Grade 5 production measuring stand


Grade 0 special purpose measuring room


Measuring room up to 4 m ceiling height


Design with manually operated ceiling and side openings for access to measuring devices using a crane.


Door and ceiling are connected; operated from the door.

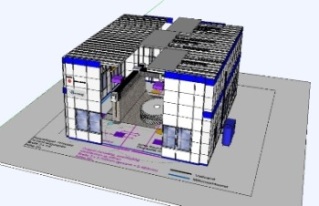

Measuring room with dimensions 16 x 14 x 8m

Full ceiling-height double sliding doors and an electrically operated ceiling opening of approx. 2 m width and 16 m length provide access for a crane


A separate motor allows the ceiling to be opened to any required width providing for economical operation of the climate control system.

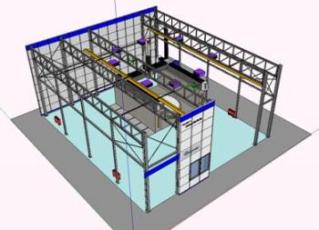

Free standing framework

The stability of the room is provided by a framework of hot rolled, epoxy-coated steel shapes (uprights, main and side support beams in bolted design). Cross-bracing in upper regions provide additional rigidity.

Assembly by trained specialists
