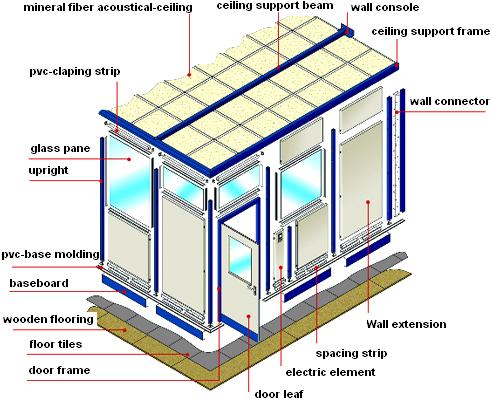

System assembly
Compatible components are the basis for the Gemac modular system. Sensible and practical
accessories complete the concept. That is a technology that convinces.
Modular assembly
- Practical tab-lock / screw system
- Modular assembly - you profit from
countless design variations - Subsequent additions and stories are always
possible. - Environmentally safe materials
|
Gemac-wall connetion
Our flexible wall connectors allow precise connection to existing structures.
- Two-part wall connector (blue)
- Hollow spaces filled with mineral fiber
- Adjustable up to 300 mm
- Easy notching for pipes, etc.
|
GEMAC- floor connection
The uprights consist of square tubing and are screwed to the floor. They are equipped
with a spindle for adjustment to the floor tolerances.
- Adjustable uprights (blue)
- PVC-molding strip at bottom
- Hollow spaces filled with mineral fiber
- Sheet metal casing
|

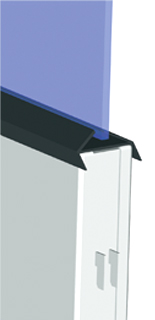

GEMAC-Standard glazing
- 5 mm floatglass
- Secured by pvc molding
- Sealed exactly and flexibly with sealing lip
Available glass
- Insulating glass
- Laminated glass
- Tempered glass
- Wire reinforced glass
- Lusterless glass
- Plexiglass
- Makrolon

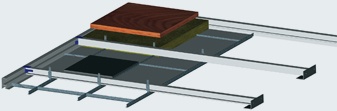

The ceiling is designed for simple and quick assembly.
- Ceiling support beam is hung from a periphery support frame
- On existing walls, consoles are used to support the ceiling support beam
- Visible hanging ceiling system 625 x 625mm (standard) for mineral fiber acoustical
ceiling panels
- Additional sound insulation through mineral fiber rolls
- Load carrying ceiling available alternately in particleboard or trapezoid sheet metal
design.
System assembly
Compatible components are the basis for the Gemac modular system. Sensible and practical
accessories complete the concept. That is a technology that convinces.
Accessories Electrical components Ventilation
* Ceiling lamp
visible, screwed to the ceiling
* Integrated ceiling lamp
recessed into the ceiling
* Cable canal
PVC-model, screwed visibly to the wall
* Wall fan
With closable louvers
* Ceiling fan
delivered with additional sound insulation
* Compact unit
for cooling or cooling / heating
* Electric convection
heater wall mounted
* Split climate unit
wall mounted
* Double floor
adjustable height, system floor for electrical installations
* Collision protector
solid, rugged design with warning colors
* Collision protection plank
solid, rugged design with warning colors
