Shelving system Normafix

From part to the whole, from the smallest detail to the comprehensive system. Normafix puts the individual components together logically to create an efficient shelving system.

• Easy to assemble snap-together system - nothing could be simpler!
• Shelves adjustable at 25 mm increments without tools.
• Shelf depth = Rack depth
• Galvanized shelves ( epoxy-coated upon request)
• Uprights epoxy coated
• Usable bay widths: 1010 and 1310mm
• Rack heights: 2000 / 2200 / 2500 / 3000 mm (standard)
• Rack depths: 300 / 350 / 400 / 500 / 600 / 700 / 800 / 1000 / 1200 mm
• Other dimensions available upon request
• Shelf height 42 mm (standard), alternative paneled shelves 25 mm high
• Shelves triple folded for your safety
• Bay loading up to 460 kg (evenly distributed), field loading depending on design
• Bottom shelf (base shelf) at floor level, no baseboard needed

Shelving system Normafix
Basic and add-on fields
in standard design

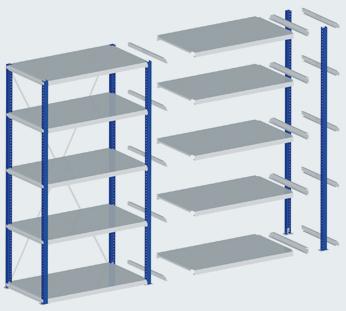

The Normafix shelf row always begins with a basic field. Additional fields can be added to the left or right as needed. Cross bracing is required in every 7th field.

Basic field Normafix

Add-on field Normafix

• 4 NF uprights w. footplate per basic field
• Shelves, number variable as required
• 2 shelf supports, 2 end-consoles per shelf
• 1 set cross bracing
• All required fasteners and safety materials

• 2 NF uprights w. footplate
• Shelves, number variable as required
• 2 shelf supports
• All required fasteners and safety materials

Basic field - large bay shelf

Add-on field - large bay shelf

• 4 NF uprights w. footplate per basic field
• Shelves 42 mm high as static shelves, number depending on loading
• Paneled shelves 25 mm high, number as required
• 2 shelf carriers and 2 end consoles per bay / paneled shelf
• All required fasteners and safety materials

• 2 NF uprights w. footplate
• Shelves, panels as required
• 2 shelf carriers per bay / paneled shelf
• All required fasteners and safety materials
