Factory offices

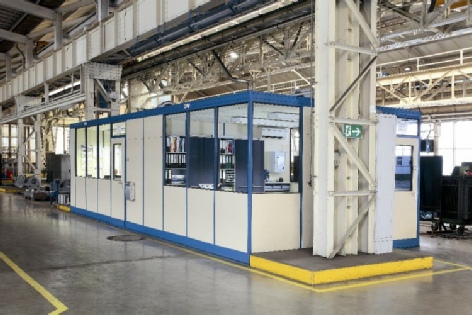

GEMAC-Indoor Line for supervisor offices, control rooms, multi-purpose rooms, laboratories, break rooms, conference rooms, social rooms.

The prefabricated elements are assembled free of dust and grime. You achieve new floor plans with a minimum of effort.

Product variations

4-sided

Can be installed anywhere completely independent from existing structures.

3-sided

Connects to an existing wall; existing windows can provide fresh air, making a ventilation system unnecessary in most cases.

2-sided

Connects to two existing walls; installation in a corner saves additional walls. In this case the ceiling weight is carried by the outer walls. If the walls are not load bearing, a support construction is provided.

Wall element variations

Full wall

Standard width	Height
250 mm	2 550 mm
500 mm	2 790 mm
750 mm	3 040 mm
1 000 mm	max. 7 000 mm

Glazed wall

Standard width	Height
500 mm	2 550 mm
750 mm	2 790 mm
1 000 mm	3 040 mm
	max. 7 000 mm

Fully glazed wall

Door for skylight

Standard width	Clearance
1 000 mm	2 094 mm
2 000 mm	2 219 mm

Double door w. opening top panels

Standard width	Clearance
1 500 mm(1.5flg.)	2 600 mm up to
2 000 mm	3 400 mm
2 500 mm

Center glazed wall

Standard width	Height
500 mm	2 550 mm
750 mm	2 790 mm
1 000 mm	3 040 mm
	max. 7 000 mm

Standard width	Height
500 mm	2 550 mm
750 mm	2 790 mm
1 000 mm	3 040 mm
	max. 7 000 mm

Standard width	Height
500 mm	2 550 mm
750 mm	2 790 mm
1 000 mm	3 040 mm
	max. 7 000 mm

Standard width	Height
1 000 mm	2 550 mm
2 000 mm	2 790 mm
	3 040 mm
	max. 7 000 mm

Full wall w. sliding window

Skylight wall

Double door for skylight

Standard width	Clearance
1 500 mm(1.5flg.)	2 094 mm
2 000 mm	2 219 mm
2 500 mm

Sliding door

Standard width	Clearance
1 000 mm	2 000 mm up to
1 500 mm	3 000 mm
2 000 mm
2 500 mm
3 000 mm

We comply to building codes!

Throughout planning, manufacturing and implementation of our office systems we adhere to the workplace regulations, (German ArbStättV) and guidelines.
