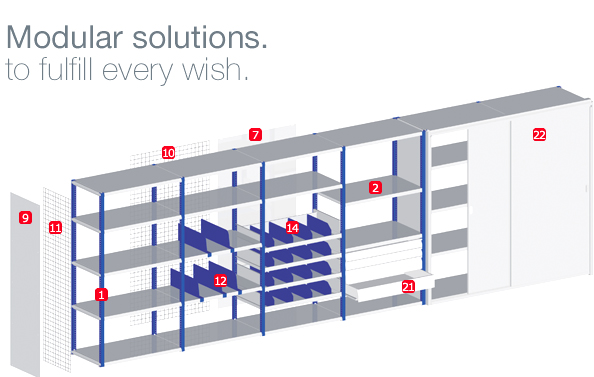

System accessories

Upright

• Steel U-shape 40/40/2 mm
• System perforations 25 mm
• Trapezoid perforations on 2 sides for attaching shelf supports and end consoles
• incl. galvanized footplate w. anchor

Shelf

• Height 42 mm
• Tripple foldered
• Usable widths 1010 and 1310 mm
• 9 different shelf depths
• Other dimensions possible
• Notches in the shelf accommodate the uprights, a small space between the shelves allow installation of side walls
• Galvanized or eopxy-coated

Shelf support

• Attach to the uprights in the depth direction and support the shelf across the entire depth
• Fit exactly into the trapezoid perforations of the uprights
• Front and rear stops secure the shelves at the corners
• Dimensions correspond to the 9 different shelf depths
• Galvanized or epoxy-coated

End console

• Complete the rack on ends at each shelf level
• Fit exactly into the trapezoid perforation of the uprights
• Used to secure end walls
• Dimensions corresponded to the 9 different shelf depths
• Ganvanized or epoxy-coated

Paneled shelf

• Height 25 mm
• Individual panels fit together to form a completely even surface, front to back
• Triple folded
• Usable widths 1010 mm and 1310 mm standard
• 9 different shelf depths, galvanized
• Other dimensions possible

Shelf reinforcement

• Increases the shelf capacity by up to 150 kg (depending on dimensions)
• Can be installed at any time without tools and without removing the shelf
• Rest upon the shelf supports
• Also suited as a step
• Galvanized

Rear- and middle walls

• For single row shelves = rear wall
• For double row shelves = middle wall
• Steel sheet metal
• Galvanized or epoxy-coated

End wall

• Attached to Normafix frames
• Steel sheet metal
• Standard epoxy-coated
• Available with perforation for goods carrier

Side wall

• Mounted between the uprights as lateral field divider
• Steel sheet metal
• Galvanized or epoxy-coated
• Avaiable with perforation for goods carriers

Wire-mesh rear- / middle wall

• For single row shelves = rear wall
• For double row shelves = middle wall
• Welded wire-mesh w. closed edges
• Mesh 50x50x3 mm
• Standard galvanized

Wire-mesh side wall

• Mounted between the uprights as lateral field divider
• Welded wire-mesh w. closed edges
• Mesh 50x50x3 mm
• Standard galvanized

Shelf divider

• As a lateral divider for shelves
• Slides horizontally
• Individually adjustable
• Height 200 mm
• Depth up to 800 mm
• Standard epoxy-coated

Side divider

• As a lateral divider between the uprights
• For depths from 300 to 600 mm
• Heights 150 mm
• Standard epoxy-coated

Storage bin set

• Espacially well suited for small parts storage (i.e. nuts, bolts, small electronics parts, etc.)
• Only for 1010 mm usably width
• For depths from 300 to 500 mm
• 1 Set =
  1 ea. Bin, 2 ea. shelf support, 4 ea. shelf divider, 2 ea. side divider
• Standard epoxy-coated

Divider tube set

• For vertical storage of large parts (i.e. in the automotive industry mufflers, body parts, etc.)
• Horizontally adjustable
• For depths of 500, 600 and 800 mm
• 1 Set = 2 carrier bars, 8 sheld supports, 8 end consoles, 1 wooden shelf
• Standard epoxy-coated

Muffler-carrier set

• For hanging storage of mufflers
• Hanger bars adjustable in 25 mm increments
• Usable widths 1010 mm and 1310 mm
• 1 Set =
  2 U-shaped carriers (perforated), 3 or 4 hanger bars
• Standard epoxy-coated

Spill retainer

• As front or rear retainer for the storage of loose small parts
• Tabs allow assembly without tools
• Can be retrofitted at any time
• Preferably in conjunction with side dividers
• For usable widths 1010 mm and 1310 mm
• 50 mm or 100 mm high
• Galvanized or epoxy-coated

Hooks for hanging storage

• For hanging storage of V-beltsor similar
• Fit on to end consoles at the rack ends
• 200 mm long
• Standard epoxy-coated

Hanger set for files

• For hanging storage files
• For usable widths 1010 mm and 1310 mm
• 1 Set = 1 file carrier (galvanized), 2 shelf supports (Perforated and epoxy-coated)

Hanging rail set

• For hanging storage of clothing
• For usable widths 1010 mm and 1310 mm
• For depths 600 or 1200 mm
• 1 Set = 2 rails (only for 600 mm), 2 shelf supports (perforated and epoxy-coated)
• galvanized or epoxy-coated

Tire support set

• For vertical storage of tires and rims the shelf system
• For usable widths 1010 and 1310 mm
• für Regaltiefen 500, 600 und 800 mm
• 1 Set = 2 rails, 2 shelf supports (perforated and epoxy-coated)
• Galvanized or epoxy-coated
• Rim supports 800 mm deep with 4 rails

Drawers

• For usable width 1010 mm
• Shelf depths 500 mm und 600 mm
• Height 100 mm oder 150 mm
• Usable drawer depth 85 mm or 135 mm
• With telescoping rail max. loading 50 kg (evenly distributed)
• Drawer body and faceplate standard epoxy-coated
• Deliverable with central locking system upon request

Sliding-door set

• Steel sheet metal
• Set is for 2 fields, either 1010 mm or 1310 mm usable width
• Deliverable up to max. height 2950 mm
• Required clearance approx. 100 mm
• Easy and quiet operation through synthetic rollers in the bottom and top guiderails
• Door with recessed grip
• incl. 1 ea. push-in cylinder lock
• Top rail accommodates ladder
• Standard epoxy-coated
• Upon request swinging doors with 2 point rod locking mechanism, recessed grip and cylinder are avaiable
